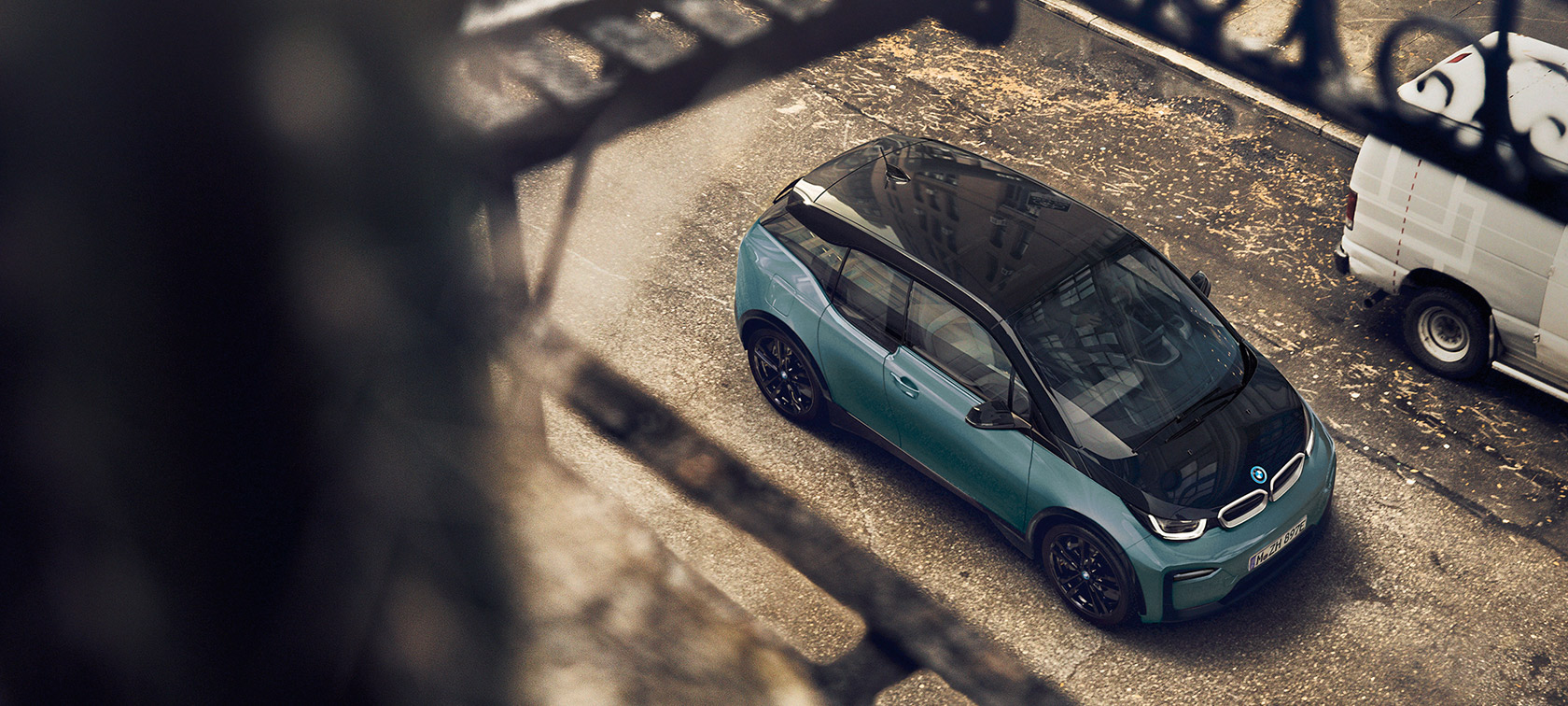

BMW i3 I01 2018 Blue Ridge Mountain with Frozen Grey metallic highlight bird´s eye view carbon roof

THE i3

BMW i3 I01 2018 Blue Ridge Mountain with Frozen Grey metallic highlight bird´s eye view carbon roof

BMW i3: ENGINES & TECHNICAL DATA

Discover the efficient electric engines, power and acceleration, range, dimensions and other technical data of the BMW i3.

Read more
THE i3BMW i3: ENGINES & TECHNICAL DATA

    TECHNICAL DATA OF THE BMW i3.

    Select Model
    Select Transmission

    System Power

    System power in kW (hp) 125 (170)
    Max. Torque (Nm) 250

    BMW eDrive

    Electric power 125 / 170
    Max. torque (Nm) at 1/min 250

    Range Charging

    WLTP combined electric range in miles 182 - 190
    Battery type Li-Ion
    Battery capacity 37.9
    Charging duration AC 9.7
    Charging duration in hrs (wallbox / public charging with max 3.7kW, 0-100%) 13
    Charging duration in hrs (AC fast charging with Wallbox, 0-80%) 3.2
    Charging duration in hrs (AC fast charging with Wallbox, 0-100%) 4.3
    Charging (fast module DC duration) 0.7
    Charging duration in hrs (DC rapid charging, 0-100%) 1.4

    Performance

    Top Speed 93
    Acceleration 7.3

    Measurements

    Length/Width/Height 4,011 / 1,775 / 1,598
    Width incl. mirrors (driver / passenger side) in mm 2039 (1031 / 1008)
    Wheelbase in mm/Wheel turn in m 2,570 / 9.9
    Ground clearance in mm 139
    Measurements
    Measurements

    Weight

    Weight not loaded in kg 1,345
    Weight Max in kg 1,710
    Permitted load in kg 440
    Permitted Axle load front/rear in kg 770 / 965
    Trunk capacity min.-max. in l 260 - 1100

    Wheels

    Tire front 155/70 R19 84 Q
    Tire rear 155/70 R19 84 Q
    Rim front 5Jx19 LM
    Rim rear 5Jx19 LM

    Consumption

    Electricity consumption combined in mi/kWh 4.1 - 3.9

    CO2 Emissions

    Combined in g/km 0

    BMW wheels and tyres EU tyre label close-up

    BMW WHEELS & TYRES.

    We subject the tyres for our vehicles to stringent tests with up to 50 different quality criteria – significantly more than prescribed by the uniform tyre labelling regulation that applies throughout Europe. This is where you will find all the information on the properties of the tyres used at BMW.
    ​

    • For plug-in hybrid vehicles these figures were obtained using a combination of battery power and fuel, for battery electric vehicles after the battery had been fully charged. Plug-in hybrid and battery electric vehicles require mains electricity for charging. Figures shown are for comparability purposes. Only compare fuel consumption, CO2 and electric range figures with other cars tested to the same technical procedures. These figures may not reflect real life driving results, which will depend upon a number of factors including the starting charge of the battery, accessories fitted (post-registration), variations in weather, driving styles and vehicle load.


      At temperatures below 0 degrees Celsius, purely electric driving mode of plug-in hybrid models will not be available until the battery has warmed up to an operational condition after the vehicle has travelled a few miles.
