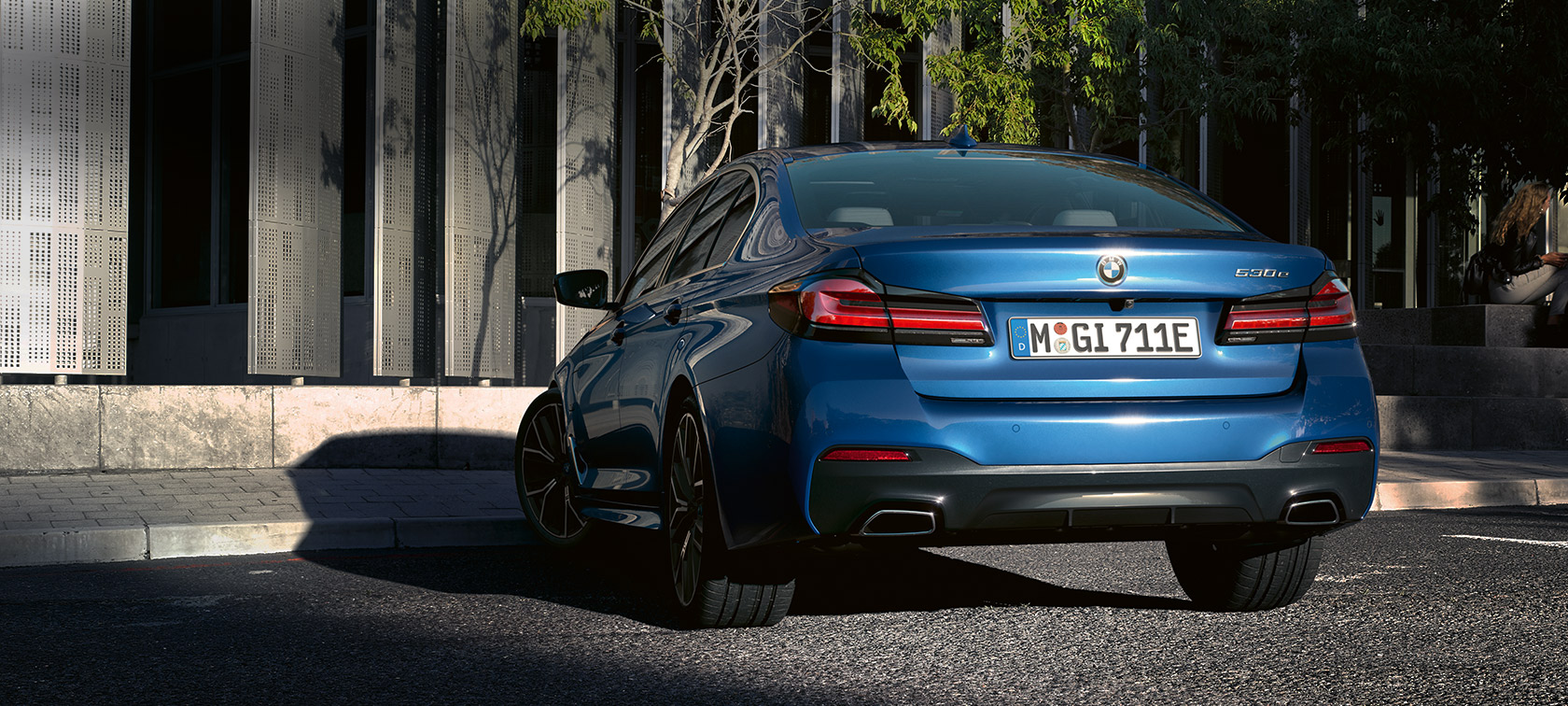

BMW 5 Series Saloon eDrive (G30) Phytonic Blue metallic, rear view parking in front of a building

THE 5

BMW 5 SERIES SALOON: ENGINES & TECHNICAL DATA.

Discover the powerful petrol, diesel and hybrid engines as well as the dimensions and other technical data of the BMW 5 Series Saloon.

Read more
THE 5BMW 5 SERIES SALOON: ENGINES & TECHNICAL DATA.
    BMW 5 Series Saloon

    BMW 5 SERIES SALOON: TECHNICAL DATA.

    Select Model
    Select Transmission

    OTR price from

    System Power

    Fuel type Driving electric and with petrol
    System power in kW (hp) 215 (292) "1"
    Max. Torque (Nm) 420 "1"
    Gearbox Automatic, 8-speed
    Drive Type rear wheel drive

    Engine

    Cylinder/ Valves per cylinder 4 / 4
    Technical capacity in cm3 1,998
    Engine performance in kW (hp) 135 (184) / 5000 - 6500
    Max torque(Nm) per 1/min 300 / 1350 - 4000

    Range Charging

    WLTP combined electric range in miles 32 - 37
    Maximum Charging Performance 3.7
    AC charging time in h (0-100% state of charge) with wallbox 3.6

    Performance

    Top Speed 146
    Top Speed Electric 86
    Acceleration 5.9

    Measurements

    Length/Width/Height 4,963 / 1,868 / 1,483
    Width incl. mirrors (driver / passenger side) in mm 2126 (1069 / 1057)
    Wheelbase in mm/Wheel turn in m 2,975 / 12
    Ground clearance in mm 150
    BMW 5 Series Saloon G30 technical data sketch
    BMW 5 Series Saloon G30 technical data sketch

    Weight

    Weight not loaded in kg 1,910
    Weight Max in kg 2,505
    Permitted load in kg 670
    Permitted Axle load front/rear in kg 1,120 / 1,450
    Allowed unbraked trailer load / drawbar load in kg 750 / 80
    Allowed braked trailer load up to 12 % / 8 % incline in kg 1,700 / 1,700
    Trunk capacity min.-max. in l 410

    Wheels

    Tire front 245/35 R20 95 Y XL
    Tire rear 275/30 R20 97 Y XL
    Rim front 8Jx20 LM
    Rim rear 9Jx20 LM

    Consumption

    Fuel consumption Weighted 201.8 - 156.9
    Electric consumption AC Weighted 3.7 - 3.4
    Tank capacity in l 46

    CO2 Emissions

    CO2 weighted 32 - 40
    "1" - This is composed of torque from the internal combustion engine (quoted maximum value) and the electric drive (up to quoted maximum value). Electric drive figures depend on battery charging status.

    System Power

    Fuel type Driving electric and with petrol
    System power in kW (hp) 215 (292) "1"
    Max. Torque (Nm) 420 "1"
    Gearbox Automatic, 8-speed
    Drive Type all wheel drive

    Engine

    Cylinder/ Valves per cylinder 4 / 4
    Technical capacity in cm3 1,998
    Engine performance in kW (hp) 135 (184) / 5000 - 6500
    Max torque(Nm) per 1/min 300 / 1350 - 4000

    Range Charging

    WLTP combined electric range in miles 29 - 33
    Maximum Charging Performance 3.7
    AC charging time in h (0-100% state of charge) with wallbox 3.6

    Performance

    Top Speed 142
    Top Speed Electric 86
    Acceleration 5.9

    Measurements

    Length/Width/Height 4,963 / 1,868 / 1,483
    Width incl. mirrors (driver / passenger side) in mm 2126 (1069 / 1057)
    Wheelbase in mm/Wheel turn in m 2,975 / 12.4
    Ground clearance in mm 146
    BMW 5 Series Saloon G30 technical data sketch
    BMW 5 Series Saloon G30 technical data sketch

    Weight

    Weight not loaded in kg 1,970
    Weight Max in kg 2,560
    Permitted load in kg 665
    Permitted Axle load front/rear in kg 1,170 / 1,455
    Allowed unbraked trailer load / drawbar load in kg 750 / 80
    Allowed braked trailer load up to 12 % / 8 % incline in kg 2,000 / 2,000
    Trunk capacity min.-max. in l 410

    Wheels

    Tire front 245/35 R20 95 Y XL
    Tire rear 275/30 R20 97 Y XL
    Rim front 8Jx20 LM
    Rim rear 9Jx20 LM

    Consumption

    Fuel consumption Weighted 166.2 - 134.5
    Electric consumption AC Weighted 3.5 - 3.2
    Tank capacity in l 46

    CO2 Emissions

    CO2 weighted 38 - 48
    "1" - This is composed of torque from the internal combustion engine (quoted maximum value) and the electric drive (up to quoted maximum value). Electric drive figures depend on battery charging status.

    System Power

    Fuel type Driving electric and with petrol
    System power in kW (hp) 290 (394) "1"
    Max. Torque (Nm) 600 "1"
    Gearbox Automatic, 8-speed
    Drive Type all wheel drive

    Engine

    Cylinder/ Valves per cylinder 6 / 4
    Technical capacity in cm3 2,998
    Engine performance in kW (hp) 210 (286) / 5000 - 6000
    Max torque(Nm) per 1/min 450 / 1600 - 3500

    Range Charging

    WLTP combined electric range in miles 29 - 33
    Maximum Charging Performance 3.7
    AC charging time in h (0-100% state of charge) with wallbox 3.6

    Performance

    Top Speed 155
    Top Speed Electric 86
    Acceleration 4.6

    Measurements

    Length/Width/Height 4,963 / 1,868 / 1,483
    Width incl. mirrors (driver / passenger side) in mm 2126 (1069 / 1057)
    Wheelbase in mm/Wheel turn in m 2,975 / 12.4
    Ground clearance in mm 146
    BMW 5 Series Saloon G30 technical data sketch
    BMW 5 Series Saloon G30 technical data sketch

    Weight

    Weight not loaded in kg 2,020
    Weight Max in kg 2,605
    Permitted load in kg 660
    Permitted Axle load front/rear in kg 1,205 / 1,455
    Allowed unbraked trailer load / drawbar load in kg 750 / 80
    Allowed braked trailer load up to 12 % / 8 % incline in kg 2,000 / 2,000
    Trunk capacity min.-max. in l 410

    Wheels

    Tire front 245/35 R20 95 Y XL
    Tire rear 275/30 R20 97 Y XL
    Rim front 8Jx20 LM
    Rim rear 9Jx20 LM

    Consumption

    Fuel consumption Weighted 156.9 - 128.4
    Electric consumption AC Weighted 3.5 - 3.3
    Tank capacity in l 46

    CO2 Emissions

    CO2 weighted 41 - 50
    "1" - This is composed of torque from the internal combustion engine (quoted maximum value) and the electric drive (up to quoted maximum value). Electric drive figures depend on battery charging status.

    System Power

    Fuel type Driving electric and with petrol
    System power in kW (hp) 215 (292) "1"
    Max. Torque (Nm) 420 "1"
    Gearbox Automatic, 8-speed
    Drive Type rear wheel drive

    Engine

    Cylinder/ Valves per cylinder 4 / 4
    Technical capacity in cm3 1,998
    Engine performance in kW (hp) 135 (184) / 5000 - 6500
    Max torque(Nm) per 1/min 300 / 1350 - 4000

    Range Charging

    WLTP combined electric range in miles 36 - 37
    Maximum Charging Performance 3.7
    AC charging time in h (0-100% state of charge) with wallbox 3.6

    Performance

    Top Speed 146
    Top Speed Electric 86
    Acceleration 5.9

    Measurements

    Length/Width/Height 4,963 / 1,868 / 1,483
    Width incl. mirrors (driver / passenger side) in mm 2126 (1069 / 1057)
    Wheelbase in mm/Wheel turn in m 2,975 / 12
    Ground clearance in mm 150
    BMW 5 Series Saloon G30 technical data sketch
    BMW 5 Series Saloon G30 technical data sketch

    Weight

    Weight not loaded in kg 1,910
    Weight Max in kg 2,505
    Permitted load in kg 670
    Permitted Axle load front/rear in kg 1,120 / 1,450
    Allowed unbraked trailer load / drawbar load in kg 750 / 80
    Allowed braked trailer load up to 12 % / 8 % incline in kg 1,700 / 1,700
    Trunk capacity min.-max. in l 410

    Wheels

    Tire front 225/55 R17 101 Y XL
    Tire rear 225/55 R17 101 Y XL
    Rim front 7,5Jx17 LM
    Rim rear 7,5Jx17 LM

    Consumption

    Fuel consumption Weighted 201.8 - 188.3
    Electric consumption AC Weighted 3.8 - 3.7
    Tank capacity in l 46

    CO2 Emissions

    CO2 weighted 31 - 34
    "1" - This is composed of torque from the internal combustion engine (quoted maximum value) and the electric drive (up to quoted maximum value). Electric drive figures depend on battery charging status.

    System Power

    Fuel type Driving electric and with petrol
    System power in kW (hp) 215 (292) "1"
    Max. Torque (Nm) 420 "1"
    Gearbox Automatic, 8-speed
    Drive Type all wheel drive

    Engine

    Cylinder/ Valves per cylinder 4 / 4
    Technical capacity in cm3 1,998
    Engine performance in kW (hp) 135 (184) / 5000 - 6500
    Max torque(Nm) per 1/min 300 / 1350 - 4000

    Range Charging

    WLTP combined electric range in miles 32 - 33
    Maximum Charging Performance 3.7
    AC charging time in h (0-100% state of charge) with wallbox 3.6

    Performance

    Top Speed 142
    Top Speed Electric 86
    Acceleration 5.9

    Measurements

    Length/Width/Height 4,963 / 1,868 / 1,483
    Width incl. mirrors (driver / passenger side) in mm 2126 (1069 / 1057)
    Wheelbase in mm/Wheel turn in m 2,975 / 12.4
    Ground clearance in mm 146
    BMW 5 Series Saloon G30 technical data sketch
    BMW 5 Series Saloon G30 technical data sketch

    Weight

    Weight not loaded in kg 1,970
    Weight Max in kg 2,560
    Permitted load in kg 665
    Permitted Axle load front/rear in kg 1,170 / 1,455
    Allowed unbraked trailer load / drawbar load in kg 750 / 80
    Allowed braked trailer load up to 12 % / 8 % incline in kg 2,000 / 2,000
    Trunk capacity min.-max. in l 410

    Wheels

    Tire front 225/55 R17 101 Y XL
    Tire rear 225/55 R17 101 Y XL
    Rim front 7,5Jx17 LM
    Rim rear 7,5Jx17 LM

    Consumption

    Fuel consumption Weighted 176.6 - 156.9
    Electric consumption AC Weighted 3.5 - 3.4
    Tank capacity in l 46

    CO2 Emissions

    CO2 weighted 37 - 41
    "1" - This is composed of torque from the internal combustion engine (quoted maximum value) and the electric drive (up to quoted maximum value). Electric drive figures depend on battery charging status.

    System Power

    Fuel type Driving electric and with petrol
    System power in kW (hp) 290 (394) "1"
    Max. Torque (Nm) 600 "1"
    Gearbox Automatic, 8-speed
    Drive Type all wheel drive

    Engine

    Cylinder/ Valves per cylinder 6 / 4
    Technical capacity in cm3 2,998
    Engine performance in kW (hp) 210 (286) / 5000 - 6000
    Max torque(Nm) per 1/min 450 / 1600 - 3500

    Range Charging

    WLTP combined electric range in miles 32 - 34
    Maximum Charging Performance 3.7
    AC charging time in h (0-100% state of charge) with wallbox 3.6

    Performance

    Top Speed 155
    Top Speed Electric 86
    Acceleration 4.6

    Measurements

    Length/Width/Height 4,963 / 1,868 / 1,483
    Width incl. mirrors (driver / passenger side) in mm 2126 (1069 / 1057)
    Wheelbase in mm/Wheel turn in m 2,975 / 12.4
    Ground clearance in mm 146
    BMW 5 Series Saloon G30 technical data sketch
    BMW 5 Series Saloon G30 technical data sketch

    Weight

    Weight not loaded in kg 2,020
    Weight Max in kg 2,605
    Permitted load in kg 660
    Permitted Axle load front/rear in kg 1,205 / 1,455
    Allowed unbraked trailer load / drawbar load in kg 750 / 80
    Allowed braked trailer load up to 12 % / 8 % incline in kg 2,000 / 2,000
    Trunk capacity min.-max. in l 410

    Wheels

    Tire front 225/55 R17 101 Y XL
    Tire rear 225/55 R17 101 Y XL
    Rim front 7,5Jx17 LM
    Rim rear 7,5Jx17 LM

    Consumption

    Fuel consumption Weighted 166.2 - 148.7
    Electric consumption AC Weighted 3.6 - 3.4
    Tank capacity in l 46

    CO2 Emissions

    CO2 weighted 39 - 43
    "1" - This is composed of torque from the internal combustion engine (quoted maximum value) and the electric drive (up to quoted maximum value). Electric drive figures depend on battery charging status.

    System Power

    Fuel type Petrol - 48V Mild-Hybrid
    System power in kW (hp) 135 (184)
    Max. Torque (Nm) 290
    Gearbox Automatic, 8-speed
    Drive Type rear wheel drive

    Engine

    Cylinder/ Valves per cylinder 4 / 4
    Technical capacity in cm3 1,998
    Engine performance in kW (hp) 135 (184) / 5000 - 6500
    Max torque(Nm) per 1/min 290 / 1350 - 4250

    Performance

    Top Speed 146
    Acceleration 7.9

    Measurements

    Length/Width/Height 4,963 / 1,868 / 1,479
    Width incl. mirrors (driver / passenger side) in mm 2126 (1069 / 1057)
    Wheelbase in mm/Wheel turn in m 2,975 / 12
    Ground clearance in mm 144
    BMW 5 Series Saloon G30 technical data sketch
    BMW 5 Series Saloon G30 technical data sketch

    Weight

    Weight not loaded in kg 1,685
    Weight Max in kg 2,285
    Permitted load in kg 675
    Permitted Axle load front/rear in kg 1,080 / 1,280
    Allowed unbraked trailer load / drawbar load in kg 750 / 90
    Allowed braked trailer load up to 12 % / 8 % incline in kg 2,000 / 2,000
    Trunk capacity min.-max. in l 530

    Wheels

    Tire front 245/35 R20 95 Y XL
    Tire rear 275/30 R20 97 Y XL
    Rim front 8Jx20 LM
    Rim rear 9Jx20 LM

    Consumption

    Fuel Consumption charge sustaining combined 44.8 - 40.9
    Tank capacity in l 68

    CO2 Emissions

    CO2 charge sustaining combined 144 - 157

    System Power

    Fuel type Petrol - 48V Mild-Hybrid
    System power in kW (hp) 135 (184)
    Max. Torque (Nm) 290
    Gearbox Automatic, 8-speed
    Drive Type rear wheel drive

    Engine

    Cylinder/ Valves per cylinder 4 / 4
    Technical capacity in cm3 1,998
    Engine performance in kW (hp) 135 (184) / 5000 - 6500
    Max torque(Nm) per 1/min 290 / 1350 - 4250

    Performance

    Top Speed 146
    Acceleration 7.9

    Measurements

    Length/Width/Height 4,963 / 1,868 / 1,479
    Width incl. mirrors (driver / passenger side) in mm 2126 (1069 / 1057)
    Wheelbase in mm/Wheel turn in m 2,975 / 12
    Ground clearance in mm 144
    BMW 5 Series Saloon G30 technical data sketch
    BMW 5 Series Saloon G30 technical data sketch

    Weight

    Weight not loaded in kg 1,685
    Weight Max in kg 2,285
    Permitted load in kg 675
    Permitted Axle load front/rear in kg 1,080 / 1,280
    Allowed unbraked trailer load / drawbar load in kg 750 / 90
    Allowed braked trailer load up to 12 % / 8 % incline in kg 2,000 / 2,000
    Trunk capacity min.-max. in l 530

    Wheels

    Tire front 225/55 R17 101 Y XL
    Tire rear 225/55 R17 101 Y XL
    Rim front 7,5Jx17 LM
    Rim rear 7,5Jx17 LM

    Consumption

    Fuel Consumption charge sustaining combined 45.6 - 43.5
    Tank capacity in l 68

    CO2 Emissions

    CO2 charge sustaining combined 142 - 149

    System Power

    Fuel type Petrol
    System power in kW (hp) 390 (530)
    Max. Torque (Nm) 750
    Gearbox Automatic, 8-speed
    Drive Type all wheel drive

    Engine

    Cylinder/ Valves per cylinder 8 / 4
    Technical capacity in cm3 4,395
    Engine performance in kW (hp) 390 (530) / 5500 - 6000
    Max torque(Nm) per 1/min 750 / 1800 - 4600

    Performance

    Top Speed 155
    Acceleration 3.8

    Measurements

    Length/Width/Height 4,972 / 1,868 / 1,467
    Width incl. mirrors (driver / passenger side) in mm 2126 (1069 / 1057)
    Wheelbase in mm/Wheel turn in m 2,975 / 12.4
    Ground clearance in mm 131
    BMW 5 Series Saloon G30 technical data sketch
    BMW 5 Series Saloon G30 technical data sketch

    Weight

    Weight not loaded in kg 1,990
    Weight Max in kg 2,560
    Permitted load in kg 645
    Permitted Axle load front/rear in kg 1,260 / 1,365
    Allowed unbraked trailer load / drawbar load in kg 750 / 90
    Allowed braked trailer load up to 12 % / 8 % incline in kg 2,000 / 2,000
    Trunk capacity min.-max. in l 530

    Wheels

    Tire front 245/40 R19 98 Y XL
    Tire rear 275/35 R19 100 Y XL
    Rim front 8Jx19 LM
    Rim rear 9Jx19 LM

    Consumption

    Combined in mpg 26.6 - 26.2
    Tank capacity in l 68

    CO2 Emissions

    Combined in g/km 243 - 247

    System Power

    Fuel type Petrol
    System power in kW (hp) 460 (625)
    Max. Torque (Nm) 750
    Gearbox Automatic, 8-speed
    Drive Type all wheel drive

    Engine

    Cylinder/ Valves per cylinder 8 / 4
    Technical capacity in cm3 4,395
    Engine performance in kW (hp) 460 (625) / 6,000
    Max torque(Nm) per 1/min 750 / 1800 - 5860

    Performance

    Top Speed 155
    Acceleration 3.3

    Measurements

    Length/Width/Height 4,983 / 1,903 / 1,469
    Width incl. mirrors (driver / passenger side) in mm 2126 (1069 / 1057)
    Wheelbase in mm/Wheel turn in m 2,982 / 12.6
    Ground clearance in mm 120
    BMW 5 Series Saloon G30 technical data sketch
    BMW 5 Series Saloon G30 technical data sketch

    Weight

    Weight not loaded in kg 1,970
    Weight Max in kg 2,440
    Permitted load in kg 545
    Permitted Axle load front/rear in kg 1,215 / 1,260
    Allowed unbraked trailer load / drawbar load in kg 750 / 90
    Allowed braked trailer load up to 12 % / 8 % incline in kg 2,000 / 2,000
    Trunk capacity min.-max. in l 530

    Wheels

    Tire front 275/35 ZR20 (102Y) XL
    Tire rear 285/35 ZR20 (104Y) XL
    Rim front 9,5J x 20
    Rim rear 10,5J x 20

    Consumption

    Combined in mpg 25.4 - 25
    Tank capacity in l 68

    CO2 Emissions

    Combined in g/km 254 - 258

    System Power

    Fuel type Diesel - 48V Mild-Hybrid
    System power in kW (hp) 140 (190)
    Max. Torque (Nm) 400
    Gearbox Automatic, 8-speed
    Drive Type rear wheel drive

    Engine

    Cylinder/ Valves per cylinder 4 / 4
    Technical capacity in cm3 1,995
    Engine performance in kW (hp) 140 (190) / 4,000
    Max torque(Nm) per 1/min 400 / 1750 - 2500

    Performance

    Top Speed 146
    Acceleration 7.2

    Measurements

    Length/Width/Height 4,963 / 1,868 / 1,479
    Width incl. mirrors (driver / passenger side) in mm 2126 (1069 / 1057)
    Wheelbase in mm/Wheel turn in m 2,975 / 12
    Ground clearance in mm 144
    BMW 5 Series Saloon G30 technical data sketch
    BMW 5 Series Saloon G30 technical data sketch

    Weight

    Weight not loaded in kg 1,750
    Weight Max in kg 2,345
    Permitted load in kg 670
    Permitted Axle load front/rear in kg 1,100 / 1,320
    Allowed unbraked trailer load / drawbar load in kg 750 / 90
    Allowed braked trailer load up to 12 % / 8 % incline in kg 2,000 / 2,000
    Trunk capacity min.-max. in l 530

    Wheels

    Tire front 245/35 R20 95 Y XL
    Tire rear 275/30 R20 97 Y XL
    Rim front 8Jx20 LM
    Rim rear 9Jx20 LM

    Consumption

    Fuel Consumption charge sustaining combined 57.6 - 52.3
    Tank capacity in l 66

    CO2 Emissions

    CO2 charge sustaining combined 128 - 143

    System Power

    Fuel type Diesel - 48V Mild-Hybrid
    System power in kW (hp) 140 (190)
    Max. Torque (Nm) 400
    Gearbox Automatic, 8-speed
    Drive Type all wheel drive

    Engine

    Cylinder/ Valves per cylinder 4 / 4
    Technical capacity in cm3 1,995
    Engine performance in kW (hp) 140 (190) / 4,000
    Max torque(Nm) per 1/min 400 / 1750 - 2500

    Performance

    Top Speed 144
    Acceleration 7.2

    Measurements

    Length/Width/Height 4,963 / 1,868 / 1,479
    Width incl. mirrors (driver / passenger side) in mm 2126 (1069 / 1057)
    Wheelbase in mm/Wheel turn in m 2,975 / 12.4
    Ground clearance in mm 139
    BMW 5 Series Saloon G30 technical data sketch
    BMW 5 Series Saloon G30 technical data sketch

    Weight

    Weight not loaded in kg 1,810
    Weight Max in kg 2,405
    Permitted load in kg 670
    Permitted Axle load front/rear in kg 1,150 / 1,330
    Allowed unbraked trailer load / drawbar load in kg 750 / 90
    Allowed braked trailer load up to 12 % / 8 % incline in kg 2,000 / 2,000
    Trunk capacity min.-max. in l 530

    Wheels

    Tire front 245/35 R20 95 Y XL
    Tire rear 275/30 R20 97 Y XL
    Rim front 8Jx20 LM
    Rim rear 9Jx20 LM

    Consumption

    Fuel Consumption charge sustaining combined 54.3 - 49.6
    Tank capacity in l 66

    CO2 Emissions

    CO2 charge sustaining combined 135 - 149

    System Power

    Fuel type Diesel
    System power in kW (hp) 210 (286)
    Max. Torque (Nm) 650
    Gearbox Automatic, 8-speed
    Drive Type all wheel drive

    Engine

    Cylinder/ Valves per cylinder 6 / 4
    Technical capacity in cm3 2,993
    Engine performance in kW (hp) 210 (286) / 4,000
    Max torque(Nm) per 1/min 650 / 1500 - 2500

    Performance

    Top Speed 155
    Acceleration 5.4

    Measurements

    Length/Width/Height 4,963 / 1,868 / 1,479
    Width incl. mirrors (driver / passenger side) in mm 2126 (1069 / 1057)
    Wheelbase in mm/Wheel turn in m 2,975 / 12.4
    Ground clearance in mm 139
    BMW 5 Series Saloon G30 technical data sketch
    BMW 5 Series Saloon G30 technical data sketch

    Weight

    Weight not loaded in kg 1,895
    Weight Max in kg 2,505
    Permitted load in kg 685
    Permitted Axle load front/rear in kg 1,250 / 1,360
    Allowed unbraked trailer load / drawbar load in kg 750 / 90
    Allowed braked trailer load up to 12 % / 8 % incline in kg 2,000 / 2,000
    Trunk capacity min.-max. in l 530

    Wheels

    Tire front 245/35 R20 95 Y XL
    Tire rear 275/30 R20 97 Y XL
    Rim front 8Jx20 LM
    Rim rear 9Jx20 LM

    Consumption

    Fuel Consumption charge sustaining combined 51.4 - 46.3
    Tank capacity in l 66

    CO2 Emissions

    CO2 charge sustaining combined 145 - 158

    System Power

    Fuel type Diesel - 48V Mild-Hybrid
    System power in kW (hp) 140 (190)
    Max. Torque (Nm) 400
    Gearbox Automatic, 8-speed
    Drive Type rear wheel drive

    Engine

    Cylinder/ Valves per cylinder 4 / 4
    Technical capacity in cm3 1,995
    Engine performance in kW (hp) 140 (190) / 4,000
    Max torque(Nm) per 1/min 400 / 1750 - 2500

    Performance

    Top Speed 146
    Acceleration 7.2

    Measurements

    Length/Width/Height 4,963 / 1,868 / 1,479
    Width incl. mirrors (driver / passenger side) in mm 2126 (1069 / 1057)
    Wheelbase in mm/Wheel turn in m 2,975 / 12
    Ground clearance in mm 144
    BMW 5 Series Saloon G30 technical data sketch
    BMW 5 Series Saloon G30 technical data sketch

    Weight

    Weight not loaded in kg 1,750
    Weight Max in kg 2,345
    Permitted load in kg 670
    Permitted Axle load front/rear in kg 1,100 / 1,320
    Allowed unbraked trailer load / drawbar load in kg 750 / 90
    Allowed braked trailer load up to 12 % / 8 % incline in kg 2,000 / 2,000
    Trunk capacity min.-max. in l 530

    Wheels

    Tire front 225/55 R17 101 Y XL
    Tire rear 225/55 R17 101 Y XL
    Rim front 7,5Jx17 LM
    Rim rear 7,5Jx17 LM

    Consumption

    Fuel Consumption charge sustaining combined 58.9 - 55.4
    Tank capacity in l 66

    CO2 Emissions

    CO2 charge sustaining combined 126 - 133

    System Power

    Fuel type Diesel - 48V Mild-Hybrid
    System power in kW (hp) 140 (190)
    Max. Torque (Nm) 400
    Gearbox Automatic, 8-speed
    Drive Type all wheel drive

    Engine

    Cylinder/ Valves per cylinder 4 / 4
    Technical capacity in cm3 1,995
    Engine performance in kW (hp) 140 (190) / 4,000
    Max torque(Nm) per 1/min 400 / 1750 - 2500

    Performance

    Top Speed 144
    Acceleration 7.2

    Measurements

    Length/Width/Height 4,963 / 1,868 / 1,479
    Width incl. mirrors (driver / passenger side) in mm 2126 (1069 / 1057)
    Wheelbase in mm/Wheel turn in m 2,975 / 12.4
    Ground clearance in mm 139
    BMW 5 Series Saloon G30 technical data sketch
    BMW 5 Series Saloon G30 technical data sketch

    Weight

    Weight not loaded in kg 1,810
    Weight Max in kg 2,405
    Permitted load in kg 670
    Permitted Axle load front/rear in kg 1,150 / 1,330
    Allowed unbraked trailer load / drawbar load in kg 750 / 90
    Allowed braked trailer load up to 12 % / 8 % incline in kg 2,000 / 2,000
    Trunk capacity min.-max. in l 530

    Wheels

    Tire front 225/55 R17 101 Y XL
    Tire rear 225/55 R17 101 Y XL
    Rim front 7,5Jx17 LM
    Rim rear 7,5Jx17 LM

    Consumption

    Fuel Consumption charge sustaining combined 55.4 - 53.3
    Tank capacity in l 66

    CO2 Emissions

    CO2 charge sustaining combined 133 - 140

    System Power

    Fuel type Diesel
    System power in kW (hp) 210 (286)
    Max. Torque (Nm) 650
    Gearbox Automatic, 8-speed
    Drive Type all wheel drive

    Engine

    Cylinder/ Valves per cylinder 6 / 4
    Technical capacity in cm3 2,993
    Engine performance in kW (hp) 210 (286) / 4,000
    Max torque(Nm) per 1/min 650 / 1500 - 2500

    Performance

    Top Speed 155
    Acceleration 5.4

    Measurements

    Length/Width/Height 4,963 / 1,868 / 1,479
    Width incl. mirrors (driver / passenger side) in mm 2126 (1069 / 1057)
    Wheelbase in mm/Wheel turn in m 2,975 / 12.4
    Ground clearance in mm 139
    BMW 5 Series Saloon G30 technical data sketch
    BMW 5 Series Saloon G30 technical data sketch

    Weight

    Weight not loaded in kg 1,895
    Weight Max in kg 2,505
    Permitted load in kg 685
    Permitted Axle load front/rear in kg 1,250 / 1,360
    Allowed unbraked trailer load / drawbar load in kg 750 / 90
    Allowed braked trailer load up to 12 % / 8 % incline in kg 2,000 / 2,000
    Trunk capacity min.-max. in l 530

    Wheels

    Tire front 225/55 R17 101 Y XL
    Tire rear 225/55 R17 101 Y XL
    Rim front 7,5Jx17 LM
    Rim rear 7,5Jx17 LM

    Consumption

    Fuel Consumption charge sustaining combined 51.4 - 49.6
    Tank capacity in l 66

    CO2 Emissions

    CO2 charge sustaining combined 143 - 148
    BMW wheels and tyres EU tyre label close-up

    BMW WHEELS & TYRES.

    We subject the tyres for our vehicles to stringent tests with up to 50 different quality criteria – significantly more than prescribed by the uniform tyre labelling regulation that applies throughout Europe. This is where you will find all the information on the properties of the tyres used at BMW.
    ​

    • For plug-in hybrid vehicles these figures were obtained using a combination of battery power and fuel, for battery electric vehicles after the battery had been fully charged. Plug-in hybrid and battery electric vehicles require mains electricity for charging. Figures shown are for comparability purposes. Only compare fuel consumption, CO2 and electric range figures with other cars tested to the same technical procedures. These figures may not reflect real life driving results, which will depend upon a number of factors including the starting charge of the battery, accessories fitted (post-registration), variations in weather, driving styles and vehicle load.


      At temperatures below 0 degrees Celsius, purely electric driving mode of plug-in hybrid models will not be available until the battery has warmed up to an operational condition after the vehicle has travelled a few miles.
