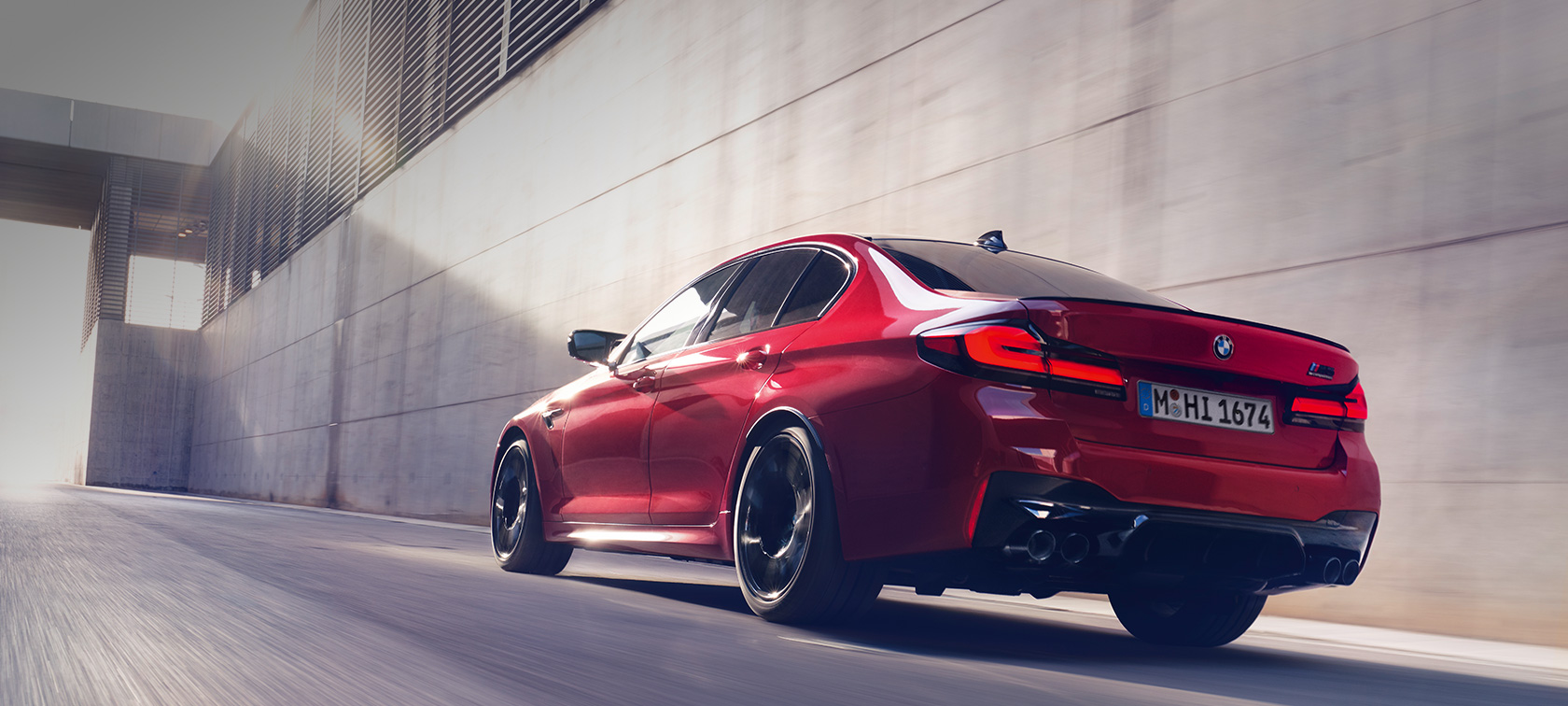

BMW M5 Competition F90 LCI Facelift 2020 BMW Individual Imola Red three-quarter rear view driving

THE M5

BMW M

THE BMW M5 COMPETITION:
ENGINES & TECHNICAL DATA


Here you can find all the engines, data, specifications and dimensions of the BMW M5 Competition.


Read more
THE M5THE BMW M5 COMPETITION:<br>ENGINES & TECHNICAL DATA

    ENGINES & TECHNICAL DATA.

    Select Model
    Select Transmission

    Engine

    Cylinder/ Valves per cylinder 8 / 4
    Technical capacity in cm3 4,395
    Stroke/Drilling in mm 88.3 / 89
    Engine performance in kW (hp) 390 (530) / 5500-6000
    Max torque(Nm) per 1/min 750 / 1800-4600
    Compression:1 10.5

    Performance

    Top Speed 155
    Acceleration 3.8

    Measurements

    Length/Width/Height 4,972 / 1,868 / 1,467
    Width incl. mirrors (driver / passenger side) in mm 2126 (1069 / 1057)
    Wheelbase in mm/Wheel turn in m 2,975 / 12.4
    Ground clearance in mm 131
    Measurements
    Measurements

    Weight

    Weight not loaded in kg 1,990
    Weight Max in kg 2,560
    Permitted load in kg 645
    Permitted Axle load front/rear in kg 1,260 / 1,365
    Allowed unbraked trailer load / drawbar load in kg 750 / 90
    Allowed braked trailer load up to 12 % / 8 % incline in kg 2,000 / 2,000
    Trunk capacity min.-max. in l 530

    Wheels

    Tire front 245/40 R19 98 Y XL
    Tire rear 275/35 R19 100 Y XL
    Rim front 8Jx19 LM
    Rim rear 9Jx19 LM

    Consumption

    Combined in mpg 26.6 - 26.2
    Tank capacity in l 68

    CO2 Emissions

    Combined in g/km 243 - 247
