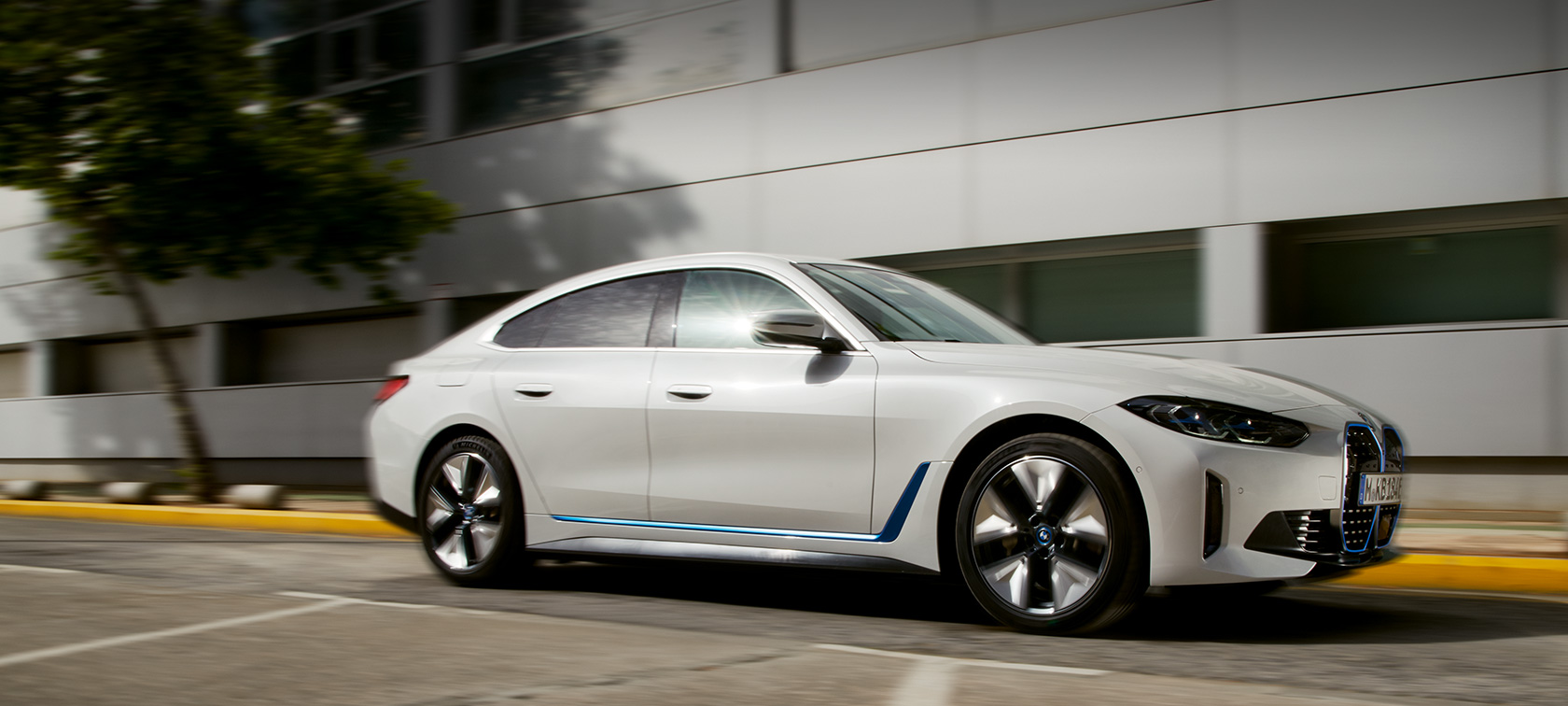

BMW i4 eDrive40 G26 2021 three-quarter side view driving in front of building

THE i4

BMW i4 eDrive40 G26 2021 three-quarter side view driving in front of building

THE ALL-NEW BMW i4:
ENGINE & TECHNICAL
DATA.

The key facts and figures on the BMW i4 at a glance: engine, energy consumption, electric range and dimensions. Check out all the performance data such as horsepower, torque and acceleration.

Read more
THE i4THE ALL-NEW BMW i4:<br> ENGINE & TECHNICAL <br>DATA.
    BMW i4

    TECHNICAL DATA OF THE BMW i4.

    Select model
    Select transmission

    System Power

    Fuel type Electric
    Power in kW (hp) 210 (286)
    Torque in Nm 400
    Gearbox 1-speed, automatic
    Drivetrain Rear-wheel drive

    BMW eDrive

    Engine performance in kW (hp) 80 (109)
    Max. Torque (Nm) 400

    Range Charging

    Electric range, WLTP in miles 284 - 299
    Maximum Charging Performance 11
    AC charging time in h (0-100% state of charge) with wallbox 7
    Maximum DC charging performance in kW 180
    DC charging time in min (10-80% state of charge) with High-Power-Charging Station 32

    Performance

    Maximum speed in mph 118
    Acceleration 0–62 mph in s 6

    Measurements

    Length/Width/Height 4,783 / 1,852 / 1,448
    Width incl. mirrors (driver / passenger side) in mm 2073 (1042 / 1031)
    Wheelbase in mm 2,856 / 12.5
    Ground clearance in mm 125
    BMW i4 G26 technical data sketch
    BMW i4 G26 technical data sketch

    Weight

    Weight not loaded in kg 2,065
    Weight max in kg 2,545
    Permitted load in kg 555
    Permitted Axle load front/rear in kg 1,140 / 1,525
    Allowed unbraked trailer load / drawbar load in kg 750 / 75
    Luggage capacity in l 470 - 1290

    Wheels

    Tire front 225/55 R17 101 Y XL
    Tire rear 225/55 R17 101 Y XL
    Rim front 7,5Jx17 LM
    Rim rear 7,5Jx17 LM

    Consumption

    Electricity consumption combined in mi/kWh 3.9 - 3.7

    CO2 Emissions

    CO2 emissions, combined WLTP in g/km 0

    System Power

    Fuel type Electric
    Power in kW (hp) 210 (286)
    Torque in Nm 400
    Gearbox 1-speed, automatic
    Drivetrain Rear-wheel drive

    BMW eDrive

    Engine performance in kW (hp) 80 (109)
    Max. Torque (Nm) 400

    Range Charging

    Electric range, WLTP in miles 276 - 288
    Maximum Charging Performance 11
    AC charging time in h (0-100% state of charge) with wallbox 7
    Maximum DC charging performance in kW 180
    DC charging time in min (10-80% state of charge) with High-Power-Charging Station 32

    Performance

    Maximum speed in mph 118
    Acceleration 0–62 mph in s 6

    Measurements

    Length/Width/Height 4,783 / 1,852 / 1,448
    Width incl. mirrors (driver / passenger side) in mm 2073 (1042 / 1031)
    Wheelbase in mm 2,856 / 12.5
    Ground clearance in mm 125
    BMW i4 G26 technical data sketch
    BMW i4 G26 technical data sketch

    Weight

    Weight not loaded in kg 2,065
    Weight max in kg 2,545
    Permitted load in kg 555
    Permitted Axle load front/rear in kg 1,140 / 1,525
    Allowed unbraked trailer load / drawbar load in kg 750 / 75
    Luggage capacity in l 470 - 1290

    Wheels

    Tire front 245/35 R20 95 Y XL
    Tire rear 255/35 R20 100 Y
    Rim front 8,5Jx20 LM
    Rim rear 9Jx20 LM

    Consumption

    Electricity consumption combined in mi/kWh 3.8 - 3.6

    CO2 Emissions

    CO2 emissions, combined WLTP in g/km 0

    System Power

    Fuel type Electric
    Power in kW (hp) 250 (340)
    Torque in Nm 430
    Gearbox 1-speed, automatic
    Drivetrain Rear-wheel drive

    BMW eDrive

    Engine performance in kW (hp) 105 (143)
    Max. Torque (Nm) 430

    Range Charging

    Electric range, WLTP in miles 346 - 365
    Maximum Charging Performance 11
    AC charging time in h (0-100% state of charge) with wallbox 8.5
    Maximum DC charging performance in kW 205
    DC charging time in min (10-80% state of charge) with High-Power-Charging Station 31

    Performance

    Maximum speed in mph 118
    Acceleration 0–62 mph in s 5.6

    Measurements

    Length/Width/Height 4,783 / 1,852 / 1,448
    Width incl. mirrors (driver / passenger side) in mm 2073 (1042 / 1031)
    Wheelbase in mm 2,856 / 12.5
    Ground clearance in mm 125
    BMW i4 G26 technical data sketch
    BMW i4 G26 technical data sketch

    Weight

    Weight not loaded in kg 2,125
    Weight max in kg 2,605
    Permitted load in kg 555
    Permitted Axle load front/rear in kg 1,140 / 1,550
    Allowed unbraked trailer load / drawbar load in kg 750 / 75
    Luggage capacity in l 470 - 1290

    Wheels

    Tire front 225/55 R17 101 Y XL
    Tire rear 225/55 R17 101 Y XL
    Rim front 7,5Jx17 LM
    Rim rear 7,5Jx17 LM

    Consumption

    Electricity consumption combined in mi/kWh 3.9 - 3.6

    CO2 Emissions

    CO2 emissions, combined WLTP in g/km 0

    System Power

    Fuel type Electric
    Power in kW (hp) 400 (544)
    Torque in Nm 795
    Gearbox 1-speed, automatic
    Drivetrain All-wheel drive

    BMW eDrive

    Engine performance in kW (hp) 125 (170)
    Max. Torque (Nm) 795

    Range Charging

    Electric range, WLTP in miles 257 - 318
    Maximum Charging Performance 11
    AC charging time in h (0-100% state of charge) with wallbox 8.5
    Maximum DC charging performance in kW 205
    DC charging time in min (10-80% state of charge) with High-Power-Charging Station 31

    Performance

    Maximum speed in mph 139
    Acceleration 0–62 mph in s 3.9

    Measurements

    Length/Width/Height 4,783 / 1,852 / 1,448
    Width incl. mirrors (driver / passenger side) in mm 2073 (1042 / 1031)
    Wheelbase in mm 2,856 / 12.5
    Ground clearance in mm 125
    BMW i4 G26 technical data sketch
    BMW i4 G26 technical data sketch

    Weight

    Weight not loaded in kg 2,290
    Weight max in kg 2,735
    Permitted load in kg 520
    Permitted Axle load front/rear in kg 1,270 / 1,550
    Allowed unbraked trailer load / drawbar load in kg 750 / 75
    Luggage capacity in l 470 - 1290

    Wheels

    Tire front 245/45 R18 100 Y XL
    Tire rear 255/45 R18 103 Y XL
    Rim front 8,5Jx18 LM
    Rim rear 9Jx18 LM

    Consumption

    Electricity consumption combined in mi/kWh 3.4 - 2.8

    CO2 Emissions

    CO2 emissions, combined WLTP in g/km 0

    System Power

    Fuel type Electric
    Power in kW (hp) 250 (340)
    Torque in Nm 430
    Gearbox 1-speed, automatic
    Drivetrain Rear-wheel drive

    BMW eDrive

    Engine performance in kW (hp) 105 (143)
    Max. Torque (Nm) 430

    Range Charging

    Electric range, WLTP in miles 336 - 352
    Maximum Charging Performance 11
    AC charging time in h (0-100% state of charge) with wallbox 8.5
    Maximum DC charging performance in kW 205
    DC charging time in min (10-80% state of charge) with High-Power-Charging Station 31

    Performance

    Maximum speed in mph 118
    Acceleration 0–62 mph in s 5.6

    Measurements

    Length/Width/Height 4,783 / 1,852 / 1,448
    Width incl. mirrors (driver / passenger side) in mm 2073 (1042 / 1031)
    Wheelbase in mm 2,856 / 12.5
    Ground clearance in mm 125
    BMW i4 G26 technical data sketch
    BMW i4 G26 technical data sketch

    Weight

    Weight not loaded in kg 2,125
    Weight max in kg 2,605
    Permitted load in kg 555
    Permitted Axle load front/rear in kg 1,140 / 1,550
    Allowed unbraked trailer load / drawbar load in kg 750 / 75
    Luggage capacity in l 470 - 1290

    Wheels

    Tire front 245/35 R20 95 Y XL
    Tire rear 255/35 R20 100 Y
    Rim front 8,5Jx20 LM
    Rim rear 9Jx20 LM

    Consumption

    Electricity consumption combined in mi/kWh 3.7 - 3.5

    CO2 Emissions

    CO2 emissions, combined WLTP in g/km 0
    BMW wheels and tyres EU tyre label close-up

    BMW WHEELS & TYRES.

    We subject the tyres for our vehicles to stringent tests with up to 50 different quality criteria – significantly more than prescribed by the uniform tyre labelling regulation that applies throughout Europe. This is where you will find all the information on the properties of the tyres used at BMW.
    ​

    • For plug-in hybrid vehicles these figures were obtained using a combination of battery power and fuel, for battery electric vehicles after the battery had been fully charged. Plug-in hybrid and battery electric vehicles require mains electricity for charging. Figures shown are for comparability purposes. Only compare fuel consumption, CO2 and electric range figures with other cars tested to the same technical procedures. These figures may not reflect real life driving results, which will depend upon a number of factors including the starting charge of the battery, accessories fitted (post-registration), variations in weather, driving styles and vehicle load.


      At temperatures below 0 degrees Celsius, purely electric driving mode of plug-in hybrid models will not be available until the battery has warmed up to an operational condition after the vehicle has travelled a few miles.
