ENGINES & TECHNICAL DATA.

Engine

Cylinder/ Valves per cylinder 4 / 4
Technical capacity in cm3 1,998
Stroke/Drilling in mm 94.6 / 82
Engine performance in kW (hp) 135 (184) / 5000-6500
Max torque(Nm) per 1/min 300 / 1350-4000
Compression:1 11

Performance

Top Speed 149
Acceleration 7.5

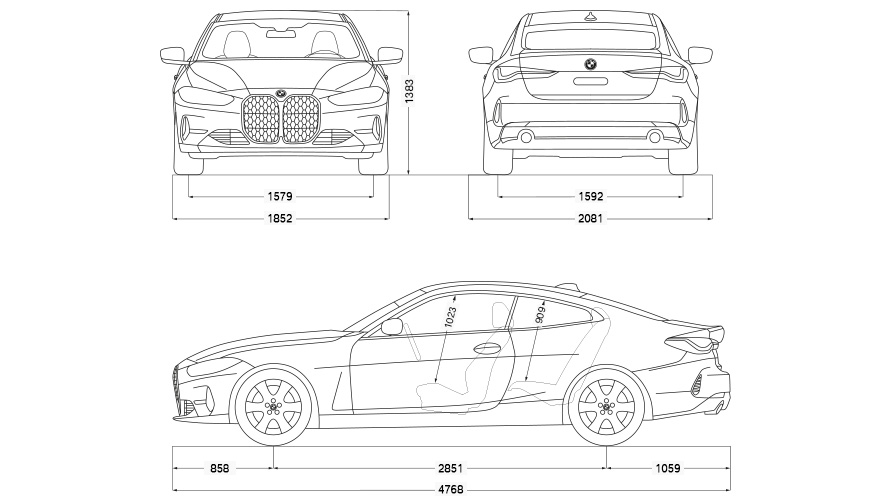

Measurements

Length/Width/Height 4,768 / 1,852 / 1,383
Width incl. mirrors (driver / passenger side) in mm 2081 (1046 / 1035)
Wheelbase in mm/Wheel turn in m 2,851 / 11.4
Ground clearance in mm 127
Measurements
Measurements

Weight

Weight not loaded in kg 1,600
Weight Max in kg 2,015
Permitted load in kg 490
Permitted Axle load front/rear in kg 970 / 1,120
Allowed unbraked trailer load / drawbar load in kg 750 / 75
Allowed braked trailer load up to 12 % / 8 % incline in kg 1,600 / 1,600
Trunk capacity min.-max. in l 440

Wheels

Tire front 225/40 R19 93 Y XL
Tire rear 255/35 R19 96 Y XL
Rim front 8Jx19 LM
Rim rear 8,5Jx19 LM

Consumption

Combined in mpg 44.1 - 42.2
Tank capacity in l 59
EU emission standard Euro 6d-ISC-FCM

CO2 Emissions

Combined in g/km 146 - 153
