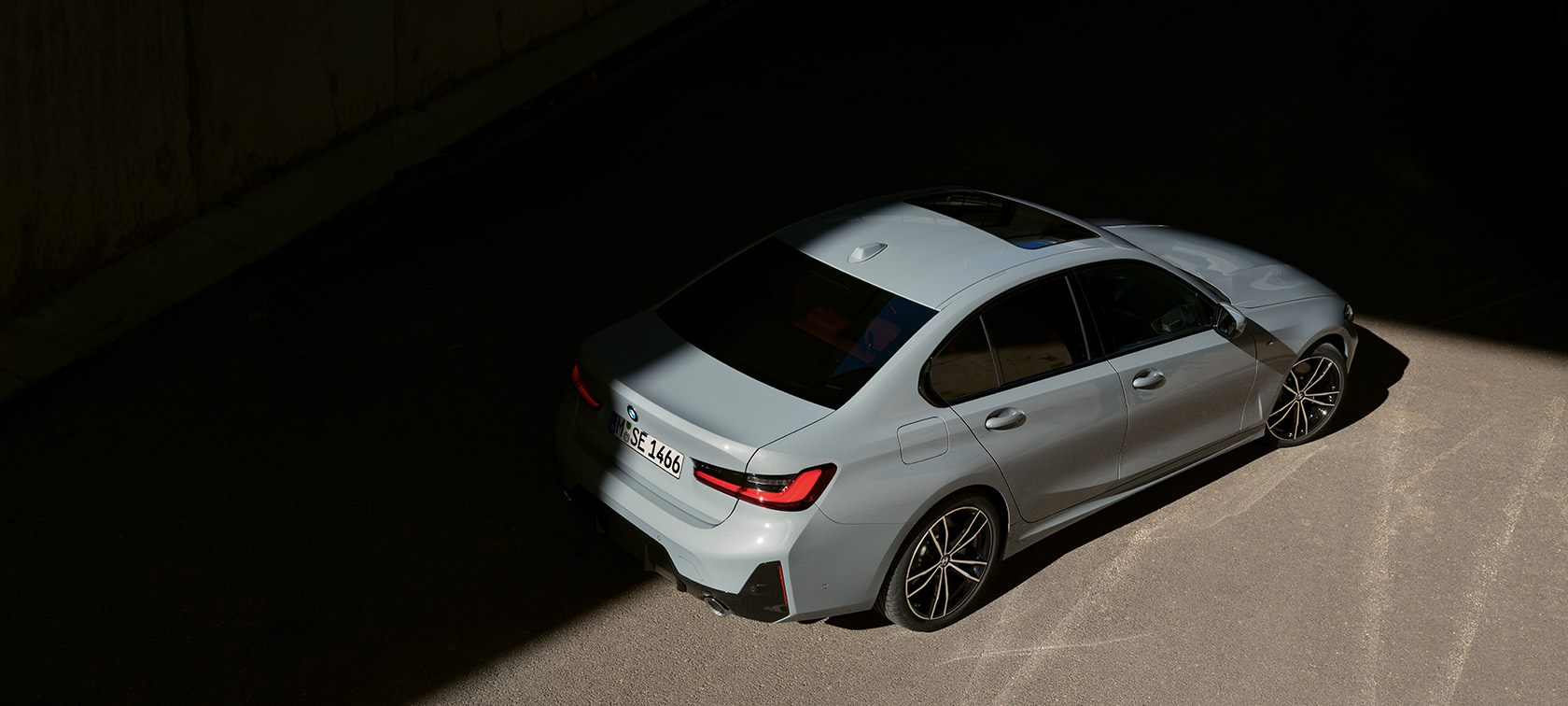

BMW 3 Series Saloon LCI G20 three-quarter rear view standing bird’s-eye view

THE NEW 3

THE NEW BMW 3 SERIES SALOON: ENGINES & TECHNICAL DATA

THE NEW 3THE NEW BMW 3 SERIES SALOON: ENGINES & TECHNICAL DATA
BMW 3 Series Saloon: Highlights

The key facts and figures for the new BMW 3 Series Saloon at a glance:


  • Engines, consumption and CO2 emissions
  • Performance data such as displacement, hp, Nm and acceleration
  • Weight, dimensions, wheel and tyre sizes
Read more

TECHNICAL DATA OF THE NEW BMW 3 SERIES SALOON.

System Power

Fuel type Driving electric and with petrol
Power in kW (hp) 215 (292) "1"
Torque in Nm 420 "1"
Gearbox 8-speed, automatic
Drivetrain Rear-wheel drive

BMW eDrive

Electric power 80 (109)
Max. Torque (Nm) 265

Engine

Cylinder/ Valves per cylinder 4 / 4
Displacement in cm³ 1,998
Engine performance in kW (hp) 135 (184) / 5000 - 6500
Max torque(Nm) per 1/min 300 / 1350 - 4000

Range Charging

Electric range, WLTP in miles 37 - 38
Maximum Charging Performance 3.7
AC charging time in h (0-100% state of charge) with wallbox 4

Performance

Maximum speed in mph 142
Top Speed Electric 86
Acceleration 0–62 mph in s 5.8

Measurements

Length/Width/Height 4,713 / 1,827 / 1,444
Width incl. mirrors (driver / passenger side) in mm 2068 (1040 / 1028)
Wheelbase in mm 2,851 / 11.4
Ground clearance in mm 147

Weight

Weight not loaded in kg 1,845
Weight max in kg 2,290
Permitted load in kg 520
Permitted Axle load front/rear in kg 1,035 / 1,320
Allowed unbraked trailer load / drawbar load in kg 750 / 75
Luggage capacity in l 375

Wheels

Tire front 225/50 R17 98 Y XL
Tire rear 225/50 R17 98 Y XL
Rim front 7,5Jx17 LM
Rim rear 7,5Jx17 LM

Consumption

Fuel consumption Weighted 217.3 - 201.8
Electric consumption AC Weighted 3.9 - 3.8
Fuel capacity in l 40

CO2 Emissions

CO2 weighted 30 - 31
"1" - This is composed of torque from the internal combustion engine (quoted maximum value) and the electric drive (up to quoted maximum value). Electric drive figures depend on battery charging status.

System Power

Fuel type Driving electric and with petrol
Power in kW (hp) 215 (292) "1"
Torque in Nm 420 "1"
Gearbox 8-speed, automatic
Drivetrain All-wheel drive

BMW eDrive

Electric power 80 (109)
Max. Torque (Nm) 265

Engine

Cylinder/ Valves per cylinder 4 / 4
Displacement in cm³ 1,998
Engine performance in kW (hp) 135 (184) / 5000 - 6500
Max torque(Nm) per 1/min 300 / 1350 - 4000

Range Charging

Electric range, WLTP in miles 36 - 37
Maximum Charging Performance 3.7
AC charging time in h (0-100% state of charge) with wallbox 4

Performance

Maximum speed in mph 142
Top Speed Electric 86
Acceleration 0–62 mph in s 5.8

Measurements

Length/Width/Height 4,713 / 1,827 / 1,444
Width incl. mirrors (driver / passenger side) in mm 2068 (1040 / 1028)
Wheelbase in mm 2,851 / 12
Ground clearance in mm 147

Weight

Weight not loaded in kg 1,900
Weight max in kg 2,345
Permitted load in kg 520
Permitted Axle load front/rear in kg 1,090 / 1,330
Allowed unbraked trailer load / drawbar load in kg 750 / 75
Luggage capacity in l 375

Wheels

Tire front 225/50 R17 98 Y XL
Tire rear 225/50 R17 98 Y XL
Rim front 7,5Jx17 LM
Rim rear 7,5Jx17 LM

Consumption

Fuel consumption Weighted 188.3
Electric consumption AC Weighted 3.7
Fuel capacity in l 40

CO2 Emissions

CO2 weighted 33 - 34
"1" - This is composed of torque from the internal combustion engine (quoted maximum value) and the electric drive (up to quoted maximum value). Electric drive figures depend on battery charging status.

System Power

Fuel type Driving electric and with petrol
Power in kW (hp) 215 (292) "1"
Torque in Nm 420 "1"
Gearbox 8-speed, automatic
Drivetrain Rear-wheel drive

BMW eDrive

Electric power 80 (109)
Max. Torque (Nm) 265

Engine

Cylinder/ Valves per cylinder 4 / 4
Displacement in cm³ 1,998
Engine performance in kW (hp) 135 (184) / 5000 - 6500
Max torque(Nm) per 1/min 300 / 1350 - 4000

Range Charging

Electric range, WLTP in miles 35 - 37
Maximum Charging Performance 3.7
AC charging time in h (0-100% state of charge) with wallbox 4

Performance

Maximum speed in mph 142
Top Speed Electric 86
Acceleration 0–62 mph in s 5.8

Measurements

Length/Width/Height 4,713 / 1,827 / 1,444
Width incl. mirrors (driver / passenger side) in mm 2068 (1040 / 1028)
Wheelbase in mm 2,851 / 11.4
Ground clearance in mm 147

Weight

Weight not loaded in kg 1,845
Weight max in kg 2,290
Permitted load in kg 520
Permitted Axle load front/rear in kg 1,035 / 1,320
Allowed unbraked trailer load / drawbar load in kg 750 / 75
Luggage capacity in l 375

Wheels

Tire front 225/40 R19 93 Y XL
Tire rear 255/35 R19 96 Y XL
Rim front 8Jx19 LM
Rim rear 8,5Jx19 LM

Consumption

Fuel consumption Weighted 201.8 - 176.6
Electric consumption AC Weighted 3.9 - 3.6
Fuel capacity in l 40

CO2 Emissions

CO2 weighted 31 - 36
"1" - This is composed of torque from the internal combustion engine (quoted maximum value) and the electric drive (up to quoted maximum value). Electric drive figures depend on battery charging status.

System Power

Fuel type Driving electric and with petrol
Power in kW (hp) 215 (292) "1"
Torque in Nm 420 "1"
Gearbox 8-speed, automatic
Drivetrain All-wheel drive

BMW eDrive

Electric power 80 (109)
Max. Torque (Nm) 265

Engine

Cylinder/ Valves per cylinder 4 / 4
Displacement in cm³ 1,998
Engine performance in kW (hp) 135 (184) / 5000 - 6500
Max torque(Nm) per 1/min 300 / 1350 - 4000

Range Charging

Electric range, WLTP in miles 34 - 36
Maximum Charging Performance 3.7
AC charging time in h (0-100% state of charge) with wallbox 4

Performance

Maximum speed in mph 142
Top Speed Electric 86
Acceleration 0–62 mph in s 5.8

Measurements

Length/Width/Height 4,713 / 1,827 / 1,444
Width incl. mirrors (driver / passenger side) in mm 2068 (1040 / 1028)
Wheelbase in mm 2,851 / 12
Ground clearance in mm 147

Weight

Weight not loaded in kg 1,900
Weight max in kg 2,345
Permitted load in kg 520
Permitted Axle load front/rear in kg 1,090 / 1,330
Allowed unbraked trailer load / drawbar load in kg 750 / 75
Luggage capacity in l 375

Wheels

Tire front 225/40 R19 93 Y XL
Tire rear 255/35 R19 96 Y XL
Rim front 8Jx19 LM
Rim rear 8,5Jx19 LM

Consumption

Fuel consumption Weighted 188.3 - 156.9
Electric consumption AC Weighted 3.7 - 3.5
Fuel capacity in l 40

CO2 Emissions

CO2 weighted 34 - 40
"1" - This is composed of torque from the internal combustion engine (quoted maximum value) and the electric drive (up to quoted maximum value). Electric drive figures depend on battery charging status.

System Power

Fuel type Petrol – 48 Volt Mild-Hybrid
Power in kW (hp) 275 (374)
Torque in Nm 500
Gearbox 8-speed, automatic
Drivetrain All-wheel drive

BMW eDrive

Electric power 8 (11)
Max. Torque (Nm) 25

Engine

Cylinder/ Valves per cylinder 6 / 4
Displacement in cm³ 2,998
Engine performance in kW (hp) 275 (374) / 5500 - 6500
Max torque(Nm) per 1/min 500 / 1900 - 5000

Performance

Maximum speed in mph 155
Acceleration 0–62 mph in s 4.4

Measurements

Length/Width/Height 4,714 / 1,827 / 1,440
Width incl. mirrors (driver / passenger side) in mm 2068 (1040 / 1028)
Wheelbase in mm 2,851 / 12
Ground clearance in mm 130

Weight

Weight not loaded in kg 1,770
Weight max in kg 2,245
Permitted load in kg 550
Permitted Axle load front/rear in kg 1,115 / 1,230
Allowed unbraked trailer load / drawbar load in kg 750 / 75
Luggage capacity in l 480

Wheels

Tire front 225/45 R18 95 Y XL
Tire rear 255/40 R18 99 Y XL
Rim front 7,5Jx18 LM
Rim rear 8,5Jx18 LM

Consumption

Fuel Consumption charge sustaining combined 34.9 - 34.4
Fuel capacity in l 59

CO2 Emissions

CO2 charge sustaining combined 182 - 184

System Power

Fuel type Petrol
Power in kW (hp) 135 (184)
Torque in Nm 300
Gearbox 8-speed, automatic
Drivetrain Rear-wheel drive

Engine

Cylinder/ Valves per cylinder 4 / 4
Displacement in cm³ 1,998
Engine performance in kW (hp) 135 (184) / 5000 - 6500
Max torque(Nm) per 1/min 300 / 1350 - 4000

Performance

Maximum speed in mph 146
Acceleration 0–62 mph in s 7.4

Measurements

Length/Width/Height 4,713 / 1,827 / 1,440
Width incl. mirrors (driver / passenger side) in mm 2068 (1040 / 1028)
Wheelbase in mm 2,851 / 11.4
Ground clearance in mm 141

Weight

Weight not loaded in kg 1,590
Weight max in kg 2,070
Permitted load in kg 555
Permitted Axle load front/rear in kg 965 / 1,170
Allowed unbraked trailer load / drawbar load in kg 750 / 75
Luggage capacity in l 480

Wheels

Tire front 225/50 R17 98 Y XL
Tire rear 225/50 R17 98 Y XL
Rim front 7,5Jx17 LM
Rim rear 7,5Jx17 LM

Consumption

Fuel consumption, combined WLTP in mpg 43.5 - 42.8
Fuel capacity in l 59

CO2 Emissions

CO2 emissions, combined WLTP in g/km 147 - 149

System Power

Fuel type Petrol
Power in kW (hp) 135 (184)
Torque in Nm 300
Gearbox 8-speed, automatic
Drivetrain Rear-wheel drive

Engine

Cylinder/ Valves per cylinder 4 / 4
Displacement in cm³ 1,998
Engine performance in kW (hp) 135 (184) / 5000 - 6500
Max torque(Nm) per 1/min 300 / 1350 - 4000

Performance

Maximum speed in mph 146
Acceleration 0–62 mph in s 7.4

Measurements

Length/Width/Height 4,713 / 1,827 / 1,440
Width incl. mirrors (driver / passenger side) in mm 2068 (1040 / 1028)
Wheelbase in mm 2,851 / 11.4
Ground clearance in mm 141

Weight

Weight not loaded in kg 1,590
Weight max in kg 2,070
Permitted load in kg 555
Permitted Axle load front/rear in kg 965 / 1,170
Allowed unbraked trailer load / drawbar load in kg 750 / 75
Luggage capacity in l 480

Wheels

Tire front 225/40 R19 93 Y XL
Tire rear 255/35 R19 96 Y XL
Rim front 8Jx19 LM
Rim rear 8,5Jx19 LM

Consumption

Fuel consumption, combined WLTP in mpg 42.8 - 40.4
Fuel capacity in l 59

CO2 Emissions

CO2 emissions, combined WLTP in g/km 148 - 157

System Power

Fuel type Diesel – 48 Volt Mild-Hybrid
Power in kW (hp) 250 (340)
Torque in Nm 700
Gearbox 8-speed, automatic
Drivetrain All-wheel drive

BMW eDrive

Electric power 8 (11)
Max. Torque (Nm) 25

Engine

Cylinder/ Valves per cylinder 6 / 4
Displacement in cm³ 2,993
Engine performance in kW (hp) 250 (340) / 4,400
Max torque(Nm) per 1/min 700 / 1750 - 2250

Performance

Maximum speed in mph 155
Acceleration 0–62 mph in s 4.6

Measurements

Length/Width/Height 4,713 / 1,827 / 1,445
Width incl. mirrors (driver / passenger side) in mm 2068 (1040 / 1028)
Wheelbase in mm 2,851 / 12
Ground clearance in mm 135

Weight

Weight not loaded in kg 1,875
Weight max in kg 2,340
Permitted load in kg 540
Permitted Axle load front/rear in kg 1,155 / 1,260
Allowed unbraked trailer load / drawbar load in kg 750 / 75
Luggage capacity in l 480

Wheels

Tire front 225/45 R18 95 Y XL
Tire rear 255/40 R18 99 Y XL
Rim front 7,5Jx18 LM
Rim rear 8,5Jx18 LM

Consumption

Fuel Consumption charge sustaining combined 46.3
Fuel capacity in l 59

CO2 Emissions

CO2 charge sustaining combined 159 - 161

System Power

Fuel type Diesel – 48 Volt Mild-Hybrid
Power in kW (hp) 140 (190)
Torque in Nm 400
Gearbox 8-speed, automatic
Drivetrain Rear-wheel drive

BMW eDrive

Electric power 8 (11)
Max. Torque (Nm) 25

Engine

Cylinder/ Valves per cylinder 4 / 4
Displacement in cm³ 1,995
Engine performance in kW (hp) 140 (190) / 4,000
Max torque(Nm) per 1/min 400 / 1750 - 2500

Performance

Maximum speed in mph 146
Acceleration 0–62 mph in s 6.9

Measurements

Length/Width/Height 4,713 / 1,827 / 1,440
Width incl. mirrors (driver / passenger side) in mm 2068 (1040 / 1028)
Wheelbase in mm 2,851 / 11.4
Ground clearance in mm 141

Weight

Weight not loaded in kg 1,645
Weight max in kg 2,140
Permitted load in kg 570
Permitted Axle load front/rear in kg 980 / 1,220
Allowed unbraked trailer load / drawbar load in kg 750 / 75
Luggage capacity in l 480

Wheels

Tire front 225/50 R17 98 Y XL
Tire rear 225/50 R17 98 Y XL
Rim front 7,5Jx17 LM
Rim rear 7,5Jx17 LM

Consumption

Fuel Consumption charge sustaining combined 58.9 - 57.6
Fuel capacity in l 59

CO2 Emissions

CO2 charge sustaining combined 127 - 129

System Power

Fuel type Diesel – 48 Volt Mild-Hybrid
Power in kW (hp) 140 (190)
Torque in Nm 400
Gearbox 8-speed, automatic
Drivetrain Rear-wheel drive

BMW eDrive

Electric power 8 (11)
Max. Torque (Nm) 25

Engine

Cylinder/ Valves per cylinder 4 / 4
Displacement in cm³ 1,995
Engine performance in kW (hp) 140 (190) / 4,000
Max torque(Nm) per 1/min 400 / 1750 - 2500

Performance

Maximum speed in mph 146
Acceleration 0–62 mph in s 6.9

Measurements

Length/Width/Height 4,713 / 1,827 / 1,440
Width incl. mirrors (driver / passenger side) in mm 2068 (1040 / 1028)
Wheelbase in mm 2,851 / 11.4
Ground clearance in mm 141

Weight

Weight not loaded in kg 1,645
Weight max in kg 2,140
Permitted load in kg 570
Permitted Axle load front/rear in kg 980 / 1,220
Allowed unbraked trailer load / drawbar load in kg 750 / 75
Luggage capacity in l 480

Wheels

Tire front 225/40 R19 93 Y XL
Tire rear 255/35 R19 96 Y XL
Rim front 8Jx19 LM
Rim rear 8,5Jx19 LM

Consumption

Fuel Consumption charge sustaining combined 57.6 - 54.3
Fuel capacity in l 59

CO2 Emissions

CO2 charge sustaining combined 129 - 137
BMW wheels and tyres EU tyre label close-up

BMW WHEELS & TYRES.

We subject the tyres for our vehicles to stringent tests with up to 50 different quality criteria – significantly more than prescribed by the uniform tyre labelling regulation that applies throughout Europe. This is where you will find all the information on the properties of the tyres used at BMW.
​

  • For plug-in hybrid vehicles these figures were obtained using a combination of battery power and fuel, for battery electric vehicles after the battery had been fully charged. Plug-in hybrid and battery electric vehicles require mains electricity for charging. Figures shown are for comparability purposes. Only compare fuel consumption, CO2 and electric range figures with other cars tested to the same technical procedures. These figures may not reflect real life driving results, which will depend upon a number of factors including the starting charge of the battery, accessories fitted (post-registration), variations in weather, driving styles and vehicle load.


    At temperatures below 0 degrees Celsius, purely electric driving mode of plug-in hybrid models will not be available until the battery has warmed up to an operational condition after the vehicle has travelled a few miles.
